Jeep Trailer

So...I did a thing.

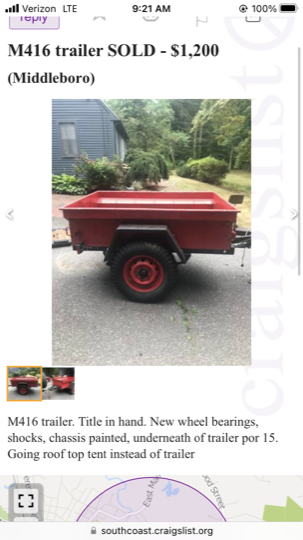

Picked up a 1967 Stevens M416 trailer.

To be named Going Places (Jeep is waiting for the "Been Places" hood decals).

It is going to be a long term project, and it won't be super fancy.

I want some sort of lockable cover. May end up making it from wood since I can do that myself. Maybe the wood would be a prototype for eventually aluminum diamond plate? Seems like there are a lot of good welders who are bad businessman and/or get overwhelmed when a weekend hobby gets too many orders for commercially produced I can't find one to order :/

Either swap the axle or get hub adapters so I can run the same wheels I do on the Jeep. That simplifies spare tire issues. Probably leave the track as narrow as possible; may require new fenders to cover the wider tires or some sort of mud flaps?

Switch it from the Pintle hitch to a lock-n-roll hitch.

I think that's the major stuff and see how it goes from there.

Not even sure I'd bother using it if I do a trip out west next year. But I need something to dream about, and if I manage to retire and go on a three month trip it'll make a really good base camp.

It was in condition I could've towed it home, but I felt safer to doing a new-to-me trailer on my utility trailer. The M46 is 60-1/2" fender to fender, my trailer is 61-1/8" wide :D so since it would fit might was well use it. Had to haul it home from Middleborough, MA -- back roads would have been an excruiatingly long ride through a lot of small cities like Taunton, Attleboro, and Smithfield all at the height of Saturday morning everyone running errands traffic. The ride home via 495/95/295 was made enough at 90 minutes.

Spec dimensions:


I will probably do this, as I have the skills to work in wood, plus would kind of suck to have something metal fabricated and decide I want to change it.

Instead of the tent like this guys did in the thread, I'd probably just put some tie downs and Thule roof rack in case I want an external load.

I also like a lot his extended tongue.

Wheel Adapters:
(I suspect this will also requiring re-locating the axle to under the springs which probably means new shocks. Fenders should also be wider...)

Stuff to convert from Pintle to Lock-n-Roll, plus tongue extension, available from these guys:

Tongue Jack:

This may be a bit of overkill, but looking for a large wheel to help manuever on dirt, stone driveway:

And finally (?) a roof rack -- can probably re-use the Thule bars from the Volvo & black Fusion :) Why? Eh, why not? Gives options if I need to carry something oddball? I hope I never need to actually add a roof top carrier to the storage already in the trailer...

The tongue tool box would be handy too...

I really like this tongue set up...but it would require extensive fabricating and welding since it replaces the whole original front:

Kind of liking both the Harbor Freight tongue box (though looking on line the Tractor Supply version looks better made...) and the jerry can mounts. Although I don't think I'll need the side mounts, I like the use of square tube. Makes me think even without a welder I could just bolt through the tub using square tube as a spacer if I do need side mount of something.

From Facebook

Possible containers for inside it:

Of course it is discontinued...for roof top tent style I've seen that would work with my bad knees, and give me an annex directly accessbile from the sleeping area so I could use a chair in the rain or setup the portable toilet. Oz Trail (Oztrail?) Outer Ridge 375 Offroad.

From Facebook
